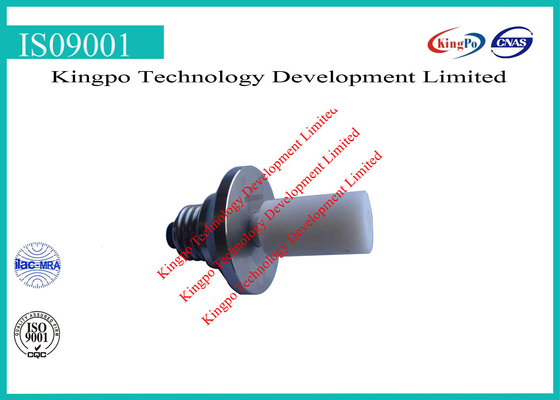

Professional E27 Lamp Cap Gauge Lampholder Gauges E27-7006-21-5
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন ডংগুয়ান |
| পরিচিতিমুলক নাম: | kingpo |
| সাক্ষ্যদান: | iso9001 |
| Model Number: | 7006-21-5 |
প্রদান:
| Minimum Order Quantity: | 1 |
|---|---|
| মূল্য: | To be quoted |
| প্যাকেজিং বিবরণ: | নিরাপত্তা শক্ত কাগজ প্যাক বা পাতলা পাতলা কাঠ বাক্স |
| ডেলিভারি সময়: | কাজ সাত দিন |
| Payment Terms: | T/T |
| যোগানের ক্ষমতা: | প্রতি মাসে ১০০০ pcs |
|
বিস্তারিত তথ্য |
|||
| পরিচিতিমুলক নাম: | Kingpo | Standard: | IEC60061-3 |
|---|---|---|---|
| HRC: | C58 To C60 | Material: | Hardness Steel |
| বিশেষভাবে তুলে ধরা: | Iec 60061 3,Go And Not Go Gauge |
||
পণ্যের বর্ণনা
E27 Lampholder gauges | Gauge for Testing Protection Against Bulb-Neck Damage And For Testing Contact- Making in Lampholder E27-7006-21-5
Purpose: to check:
a) protection against bulb-neck damage by the rim of the E27 lampholder.
b) contacting-making in E27 lampholders with respect to lamps having dimensions adverse to contact making.
Testing:
a) when the gauge is fully screwed home with a torque of
- 1.0Nm* for ceramic holders,
- 0.4Nm* for all other holders,
there shall be a clearance** between the gauge and the edge of the rim of the lampholder.
b) in this position, and with the lampholder connected with test circuit as show, the indicator lamp shall light.
* an increase of these value is under consideration.
** a feeler gauge with an approximate thickness of 0,08mm and a width of 5mm shall be used to check that this clearance exists over the full circumference.
Related gauges for E27 lamp holder:
| E27 lamp holder gauge | "GO" GAUGE FOR LAMPHOLDERS E27 | 7006-25A-2 |
| NOT GO”GAUGE FOR SCREW THREADS OF LAMPHOLDERS E27 | 7006-26-4 | |
| GAUGE FOR TESTING PROTECTION AGAINST BULB-NECK DAMAGE AND FOR TESTING CONTACT-MAKING IN LAMPHOLDERS E27 | 7006-21-5 | |
| GAUGE FOR TESTING CONTACT-MAKING AND PROTECTION AGAINST ACCIDENTAL CONTACT DURING INSERTION OF LAMPS IN LAMPHOLDERS E27 | 7006-22A-5 | |
| GAUGE FOR DETECTING SIDE-CONTACTS WITH CUTTING-EDGES IN LAMPHOLDERS E27 | 7006-22B-1 | |
| GAUGE I FOR CHECKING SIDE-CONTACT RESILIENCY IN LAMPHOLDERS E27 | 7006-22C-1 | |
| GAUGE II FOR CHECKING SIDE-CONTACT RESILIENCY IN LAMPHOLDERS E27 | 7006-22D-1 |
